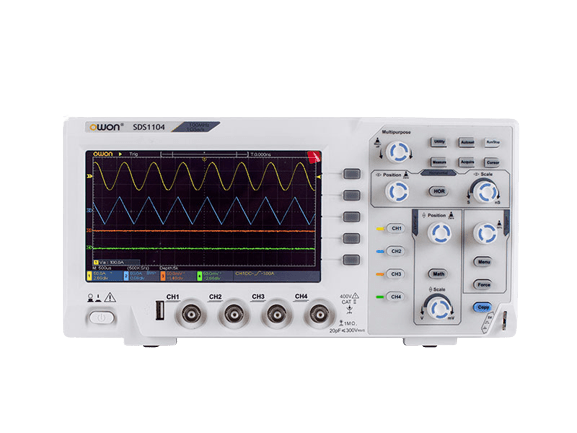

OWON SDS1104 4CH Series Economical Type Digital Oscilloscope

Model

SDS1104

 Bandwidth

100MHz

 Sample Rate

1GS/s

 Horizontal Scale (s/div)

2ns/div – 1000s/div, step by 1 – 2 – 5

 Channel

4

 Display

7″ color LCD, 800 x 480 pixels

 Record Length

20K (80K optional)

 Probe Attenuation Factor

1X, 10X, 100X, 1000X

 Input Coupling

DC, AC , and GND

 Vertical Sensitivity

5mV/div – 5V/div (at input)

 Trigger Type

Edge, Video

 Trigger Mode

Auto, Normal, and Single

 Cursor Measurement

△V,  △T between cursors，△V and △T between cursors，Auto-cursors

 Automatic Measurement

Vmax, Vmin, Vpp, Vtop, Vbase, Vamp, Vavg, Vrms, Cycle RMS,

Cursor RMS, Overshoot, Preshoot, Freq, Period, Rise Time, Fall Time, +Width, -Width,

+Duty Cycle, -Duty Cycle, Screen Duty, FRR, FRF, FFR, FFF, LRR, LRF, LFR,

LFF, Delay A→B ↑, Delay A→B↓, Phase A→B ↑, Phase A→B↓,

+Pulse Count, -Pulse Count, Rise Edge Count, Fall Edge Count, Area, Cycle Area

 Waveform Math

＋, －, x, ÷, invert, FFT

 Waveform Storage

16 waveforms

 Communication Interface

USB host, USB device

 Frequency Counter

available

 Power Supply

100V – 240V AC, 50/60Hz, CAT II

 Power Consumption

＜15W

 Dimension (W x H x D)

301 x 152 x 70 mm

 Device Weight

1.10 kg
