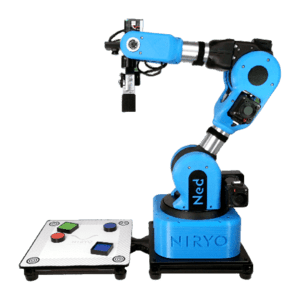

The Niryo Ned robot arm is a robotic platform designed for programming instruction in an industrial setting. Languages such as MATLAB, C++, and Python can be used to create applications. It also supports a variety of communication protocols, such as TCP/IP and Modbus.
Although it is based on Ubuntu 18.04 and ROS, this educational and collaborative robot is compatible with all operating systems (Windows, MacOS, and Linux). As a result, it is an open-source development and programming solution.
A complete Industry 4.0 training ecosystem requires accessories:
- 2 different grippers (one large and one adaptive)
- a pack of jaws (to modify the gripper supplied with the Niryo NED arm),
- a vacuum pump
- an electromagnet.
How control Ned?
- Turn on Ned’s learning mode to position it manually and teach it positions to reproduce. Control Ned can be as easy as pressing a button.
- With Niryo Studio, our free desktop application, use blocks to create your own roboctic programs. Based on Blockly (similar to Scratch), our visual programming interface allows you to quickly and easily create robotic programs without any prior programming knowledge.
- Use an Arduino or a Raspberry Pi to control Ned through its digital inputs and outputs (tutorial).
- Advanced Users : develop your own controller (use a computer mouse, a keyboard, a game controller or Leap Motion to control Ned according to your preferences and needs), use our API (Python, Modbus, TCP) to control Ned directly or remotely, or dive directly into the ROS code, which is open-source.
|Number of axis||6|
|Max Reach||440 mm|
|Power Supply||11.1 Volts / 6A|
|Communication||Ethernet 1 Gb/s
WIFI 2,4GHz & 5GHz – 802.11 g/g/n/ac – (~31 dBm, <80dBm)
Bluetooth 5.0 BLE
|Interface/Programming||Windows/MacOS/Linux (desktop application) & APIs|
|Power consumption||~ 60 W|
|Materials||Aluminum, PLA (3D printing)|
|Ports||1 Ethernet + 2 USB 3.0 + 2 USB 2.0|
|Hardware||Raspberry pi 4
+ 3 x NiryoSteppers
+ 2 x Dynamixel XL – 430
+ 1 x Dynamixel XL – 320
|Collision detection sensor||Magnetic sensor (on motor)|
*Ned is a robot primarily made for educational purposes, and testing of small assembly lines. We do not guarantee any precision and robustness over time for your application.
