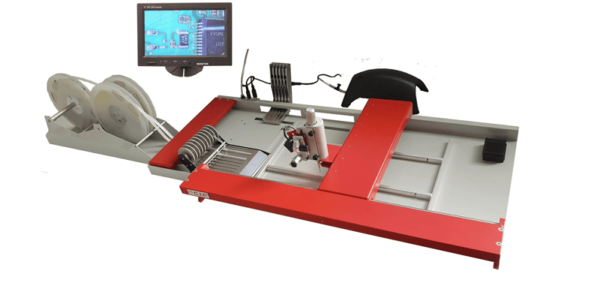

SMD manipulator – EASYPLACER.VLD with camera. LCD display. dispensing support
Features:
- SMD manipulator – EASYPLACER.VLD with camera LCD display and dispensing support
- The EASYPLACER.VLD manipulator is a new manual system for the placement of SMT-components.
- It is a perfect ergonomic station including a lot of functions with an attractive price.
- Slight arm movement in axis X and Y allows comfortable choosing components and their placing all over the workplace. Place your component with the head on the Z axis. You can rotate also easily the component on 360°.
- A camera located near the vacuum pipette and connected to monitor helps the operator for the placement of finepitch components.
Perfect ergonomics - Very efficient working area of 350 x 210 mm
- Placement make easier by camera connected to a 156″” TFT LCD monitor included as standard
10 cc sliding syringe stand suitable with all kind of dispenser
Acccuracy 0603 and 0402 chips
- The arm support assures a comfortable position for the operator
Sensitive head with 360° rotation of pipette
- Efficient lighting built-in the arm
- Vacuum pump delivered as standard
- 3 board supports
- Optional feeders available
The Pick and Place station EASYPLACER.VLD is delivered complete with :
1 colour camera with 156″” TFT LCD monitor
1 sliding syringe stand (10 cc)
1 vacuum pump 230V – 6W
2 different needles (137mm and 06 mm)
2 different Ø of rubber discs for the prehension of big components (35 mm and 64mm)
3 board supports
1 dispensing head
Available Options & accessories for EASYPLACER.VLD manipulator :
- Universal feeder for 10 pcs tapes 8 mm short strips
- Holder for 10 reels for V900130
- Standard feeder for 5 sticks – ICs S08
- Standard feeder for 5 sticks – ICs S16
- Set of 12 bulk components snap-boxes (B3) new
- Set of 12 ESD bulk components snap-boxes (B3K) new
- EASYPLACER mounting set including: ESD foam & metallic base for 12 bulk components snap-boxes
Working area dimensions 350 x 210 mm
Motion of head in X/Y/Z axes 480 x 235 x 15 mm
Accuracy 0402
Speed Up to 700 components / hour
Sound level < 70 dB(A)
pressure/flow 0>024 Mpa / 5 dm3 / min
Manipulator dimensions 790 x 390 x 170 mm
Manipulator + Feeder dimensions 1145 x 430 x 195 mm
Weight 6 Kg
Power supply 230 V – 50/60 Hz
CCD camera
Viewing angle: 78°
CMOS sensor: 1/4″” – 8 Mpx
Video resolution: 1080p / 30fps – Full HD
PC monitor
Display dimensions: 156″” TFT LCD (40 cm) widescreen 16:9
Resolution: 1366 x 768 px
Dimensions with stand: 378 x 281 x 189 mm
The PC monitor has standard settings (brightness contrast color) which can be individually adjusted according to the actual need.
Motion of head in X/Y/Z axes 480 x 235 x 15 mm
Accuracy 0402
Speed Up to 700 components / hour
Sound level < 70 dB(A)
pressure/flow 0>024 Mpa / 5 dm3 / min
Manipulator dimensions 790 x 390 x 170 mm
Manipulator + Feeder dimensions 1145 x 430 x 195 mm
Weight 6 Kg
Power supply 230 V – 50/60 Hz
TECHNICAL DATA OF VISION SYSTEM
CCD camera
Viewing angle: 78°
CMOS sensor: 1/4″” – 8 Mpx
Video resolution: 1080p / 30fps – Full HD
PC monitor
Display dimensions: 156″” TFT LCD (40 cm) widescreen 16:9
Resolution: 1366 x 768 px
Dimensions with stand: 378 x 281 x 189 mm
The PC monitor has standard settings (brightness contrast color) which can be individually adjusted according to the actual need.
