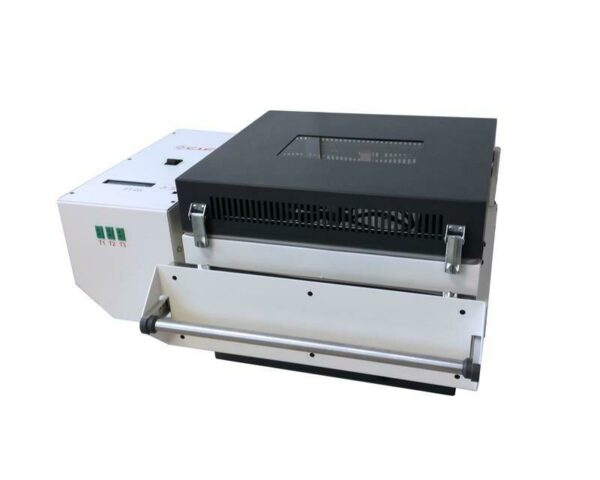

Reflow oven FT05 Advanced
Forced convection reflow oven for prototypes and small series.
The reflow oven FT05.ADV is a new generation of professional oven.
It was created to work with the new high temperature alloys.
For a best precision the heat is distributed by forced convection.
Features:
- Complete view of the card through a large window
- Compact model but offering a reflow working area of 350 x 400 mm
- Display on LCD screen of the different advice
- Internal or external probe can be used as a reference regulation of the reflow profile
- Memorisation of 10 programmes as standard
- Compatible for high temperature alloys above all lead free
- Heat through forced convection.
- Temperature control by microprocessor.
- Very easy programmation for a simple use
- Fully secured oven.
SMTIX 2.0 included as standard for:
- Control of oven using SMTIX 2.0
- Possibility to create up to 10 temperature increments
- Memorization of an infinite amount of programs
- Data collection
- Ergonomic user interface
SMTIX 2.0 is a single-user license (1 pc) more licenses on request.
SMTIX 2.0 requires a Windows® 10 PC (not included)
The FT05 Advanced Auto differs from the FT05 Advanced in that it has a motorized fume extraction valve that allows automatic control of the fume extraction door
| Model | FT05 ADV | FT05 ADV AUTO | FT05 ADV PREMIUM |
| Part number | V900324 | V900332 | V900038 |
| Control Software SMTix 2.0 | INCLUDED | ||
| Working area : | 350 x 400 mm | ||
| Heating levels without software : | 2 | ||
| Heating levels with software : | Up to 10 (SMTIX 2.0) | ||
| Heating elements | 4 x 1 KW | ||
| Temperature control | By microprocessor | ||
| Max. working temperature | Up to 300°C | ||
| Thermic stabilisation time | About 5 minutes | ||
| Heat treatment | 70 hours max. | ||
| Noise level | Bellow à 50 dBA | ||
| Dimensions | 730 x 640 x 380 mm |
730 x 640 x 380 mm (oven) 307 x 307 x 410 mm (filtration) |
|
| Weight | 39 Kg | 40 Kg | 52 Kg |
| Power supply | 230 V – 50/60 Hz | ||
| Auto. Exhaust Valve Management | NO | YES | NO |
| Filtration unit | OPTION | OPTION | INCLUDED |
| Thermocouples included as standard | 1 | 1 | 3 |
