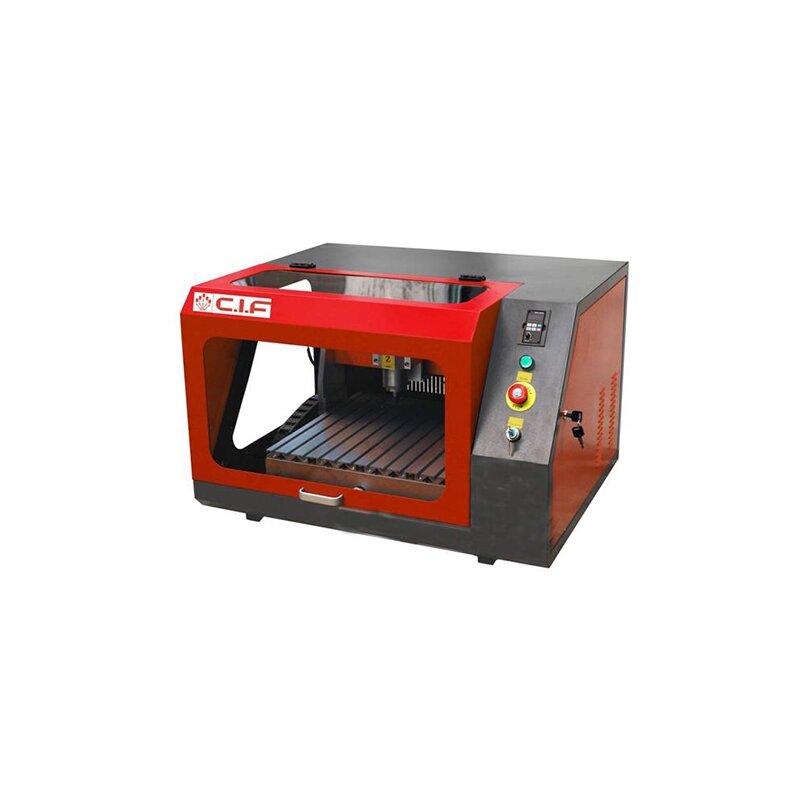

CNC Rapid Prototyping Machine 3 Axis – 3D Technodrill 3
Features:
• 3-axis machine – 3D
• Z-axis passage 90 mm
• Useful stroke 390 x 315 x 60 mm (actual under tool with options)
• PCB CNC production centre
• Servo control of the spindle rotation by the software
• Immediate learning
• Versatile: drilling milling depaneling cutting control dispensing…
• Compatible with all file types HPGL ISO EXCELLON GERBER GCODE DXF …
• GALAAD 3 piloting software (with free updates)
• Integrated electronic control box
• Z-axis moving probe as standard
• Security: mechanical clamping and software clamping
• Protective cover and low voltage lighting as standard
• Many options available
- In its complete version the TECHNODRILL 3 is delivered with its piloting software the GALAAD 3 pack (industry or education version) an 800 W pin and a protective cover with circuit breaker.
- This 3D software included “”English engraving”” of printed circuit boards.
- Compatible with many machines and many CAD and CAD / CAM software it accepts HPGL ISO EXCELLON GERBER GCODE DXF files.
- The Technodrill 3 is the versatile tool of the electronic laboratory par excellence
|
Technodrill 3 |
Technodrill 3 XL | ||||
| Educational Lic | Industry Lic | Educational Lic | Industry Lic | ||
| Interpolation | 3 axes – 3D | ||||
| Free passage Unver Z axis | 90 mm | ||||
| X. Y. Z. Motion | 390 x 315 x 60 mm (real under the tool with options independent adjustment of Z of spindle) | 385 x 580 x 60 mm (real under the tool with options independent adjustment of Z of spindle) | |||
| Table | 380 x 500 mm | 500 x 645 mm | |||
| Resolution | 0.0015 mm micros steps (0.059 mil) | ||||
| Reproducibility | +/- 0.005 mm (0.2 mil) | ||||
| Spindle power | 800 W. 10000 at 24000 rpm | ||||
| Tool replacement | Semi-automatic as standard automatic as option | ||||
| Drilling stroke | 360 holes / mn (Ø 0.8 mm) | ||||
| Mini track width | 0.15 mm (5.90 mil) | 02 mm (8 mil) | |||
| Mini isolation | 0.15 mm (5.90 mil) | 02 mm (8 mil) | |||
| Mini drilling Ø | 0.3 mm (12 mil) | ||||
| Motion speed | 100 mm/s maxi | ||||
| Linear guide | screw and ball socket (pas 4 mm) (pas 5 mm) | ||||
| Motor X. Y. Z | 3 step motors at 1/16 steps per rotation adjustable (3200 steps/rotation) | ||||
| Frequency | Up to 200 KHz | ||||
| Table type | Grooved aluminium for quick placement | ||||
| Positionning tool sensor | Included as standard | ||||
| Power supply | 230 V – 50 Hz – 8 A | ||||
| Net weight | 76 Kg | 90 Kg | |||
| External dimensions (L x l x H) | 880 x 700 x 590 mm |
850 x 1000 x 670 mm
|
|||
| Noise level | < 65 dBA | ||||
| Protective cover | Included as standard | ||||
| Linghting | Included as standard | ||||
| Delivered with | Software GALAAD 3 (Free updates) | ||||
| Security | Mecanical and software lock | ||||
| Compatible with all file types HPGL ISO EXCELLON GERBER GCODE DXF… | |||||
